Electroless Nickel Surface Preparation: Ensuring a Uniform and Durable Coating

Electroless nickel surface preparation is a critical step in achieving a uniform, reliable, and long-lasting coating. Before parts are immersed in the plating bath, the quality of cleaning and preparation directly affects coating adhesion, deposit uniformity, and the final performance of treated components.

At Verbrugge, surface preparation is an integral part of process control. It contributes directly to coating quality, process repeatability, and long-term component reliability.

To learn more about the complete process, visit our page:
What Is Electroless Nickel Plating?

Why Is Electroless Nickel Surface Preparation Essential?

Electroless nickel plating is an autocatalytic nickel-phosphorus coating process. Because deposition occurs without electrical current, the substrate must be perfectly clean and chemically active to initiate the reaction correctly and ensure consistent coating thickness.

The ISO 4527 standard defines requirements for autocatalytic nickel-phosphorus coatings and highlights the importance of proper substrate preparation before treatment.

Even minor contamination can disrupt the plating process and lead to:

• Surface defects;
• Poor coating adhesion;
• Irregular coating thickness;
• Reduced corrosion resistance;
• Lower wear resistance.

Which Contaminants Must Be Removed Before Treatment?

Prior to treatment, components must be completely free of contaminants. The following residues can compromise coating quality:

• Grease;
• Oil;
• Paint;
• Adhesives;
• Varnish and protective coatings;
• Marker residues;
• Oxidation traces;
• Dust, particles, and other contaminants.

Even localized contamination can prevent proper nickel deposition and create defects on the final coating.

Consequences of Poor Electroless Nickel Surface Preparation

• Insufficient coating adhesion;
• Non-uniform coating thickness;
• Visible surface defects;
• Reduced corrosion protection;
• Lower wear resistance;
• Production quality issues;
• Increased risk of coating failure.

Optimizing Cleaning Operations for High-Quality Coatings

Every component has unique geometries and technical requirements. Cleaning and preparation methods must therefore be adapted to achieve the highest possible level of cleanliness before electroless nickel plating.

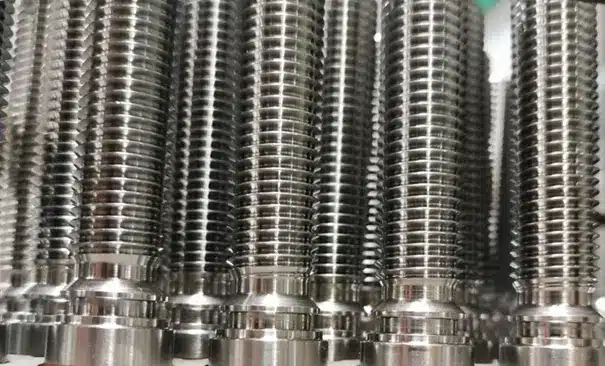

At Verbrugge, our processing line is equipped with an ultrasonic degreasing tank. This technology ensures thorough cleaning, including hard-to-reach areas, internal cavities, and complex geometries.

Ultrasonic cleaning improves the removal of ickel deposition.

Electroless Nickel Surface Preparation and Quality Requirements

The quality of the final coating also depends on the condition of the components when they arrive for processing. Parts intended for electroless nickel plating should therefore be delivered clean and ready for treatment.

When additional cleaning is required, supplementary preparation operations can be performed to restore optimal plating conditions. This requirement is fully aligned with our quality management approach.

Controlling the Entire Coating Process

The performance of an electroless nickel coating does not depend solely on the plating bath. It relies on complete process control, from initial surface preparation to final quality inspections.

At Verbrugge, we continuously invest in advanced equipment and process improvements to ensure high standards of quality, repeatability, and reliability across all surface treatment operations.

Conclusion

Electroless nickel surface preparation is a key factor in achieving a high-quality coating. Thorough cleaning, appropriate equipment, and complete process control help ensure a durable, uniform, and high-performance electroless nickel coating.
